What is FRP-to-plastic conversion?

It is redesigning a part currently hand-laid in FRP / fibreglass (GRP) so it can be made as a thermoformed thermoplastic part instead — keeping the function while gaining repeatability, speed, recyclability and a styrene-free process. It works best for single-skin covers, panels, canopies and sanitary ware at low-to-medium volumes.

Why convert fibreglass to thermoformed plastic?

Hand lay-up is slow, labour-intensive and varies part to part; it needs gelcoat, sanding and paint; and thermoset FRP cannot be recycled. Thermoforming gives consistent parts every cycle, formed-in colour and texture, clean CNC-trimmed detail, tougher impact behaviour, and thermoplastic that regrinds and reuses — in a cleaner, styrene-free workplace.

Which FRP parts are good candidates?

Single-skin covers, canopies and cowls; body panels, fenders and wheel arches; machine guards and enclosures; tractor and off-highway cabin panels; and sanitary ware such as shower trays and vanities. Boat hulls, heavily loaded structural composites and thick cored sandwich laminates are usually better left in FRP.

Will a thermoformed part be as stiff as the FRP part?

For most single-skin parts, yes — with the right grade and design. Thick-gauge thermoforming produces rigid parts, and stiffness is engineered in with wall thickness, ribs, formed geometry and, where needed, bonded reinforcements. We select the grade to match the original part's impact, temperature and load requirements.

Can you use our existing FRP mould or pattern?

Often yes — an existing FRP part or plug can serve as the master to CNC-machine the thermoforming tool from, which shortens tooling time. We confirm this during the DFM review.

Can you match the colour and finish?

Yes. Because Indu extrudes its own sheet, colour is matched to Pantone or RAL in the resin, with textured or gloss finishes formed in — usually replacing the gelcoat-and-paint steps entirely.

FRP / fibreglass conversion

Replace fibreglass parts with thermoformed plastic

Hand-laid FRP (fibreglass / GRP) parts are slow to make, vary batch to batch, need gelcoat and paint, and can't be recycled. Converting them to thermoformed thermoplastic makes parts consistent, faster, recyclable and styrene-free — with colour and texture formed in and every cut-out CNC-trimmed clean.

Get a Conversion Assessment See Thick-Gauge Capability

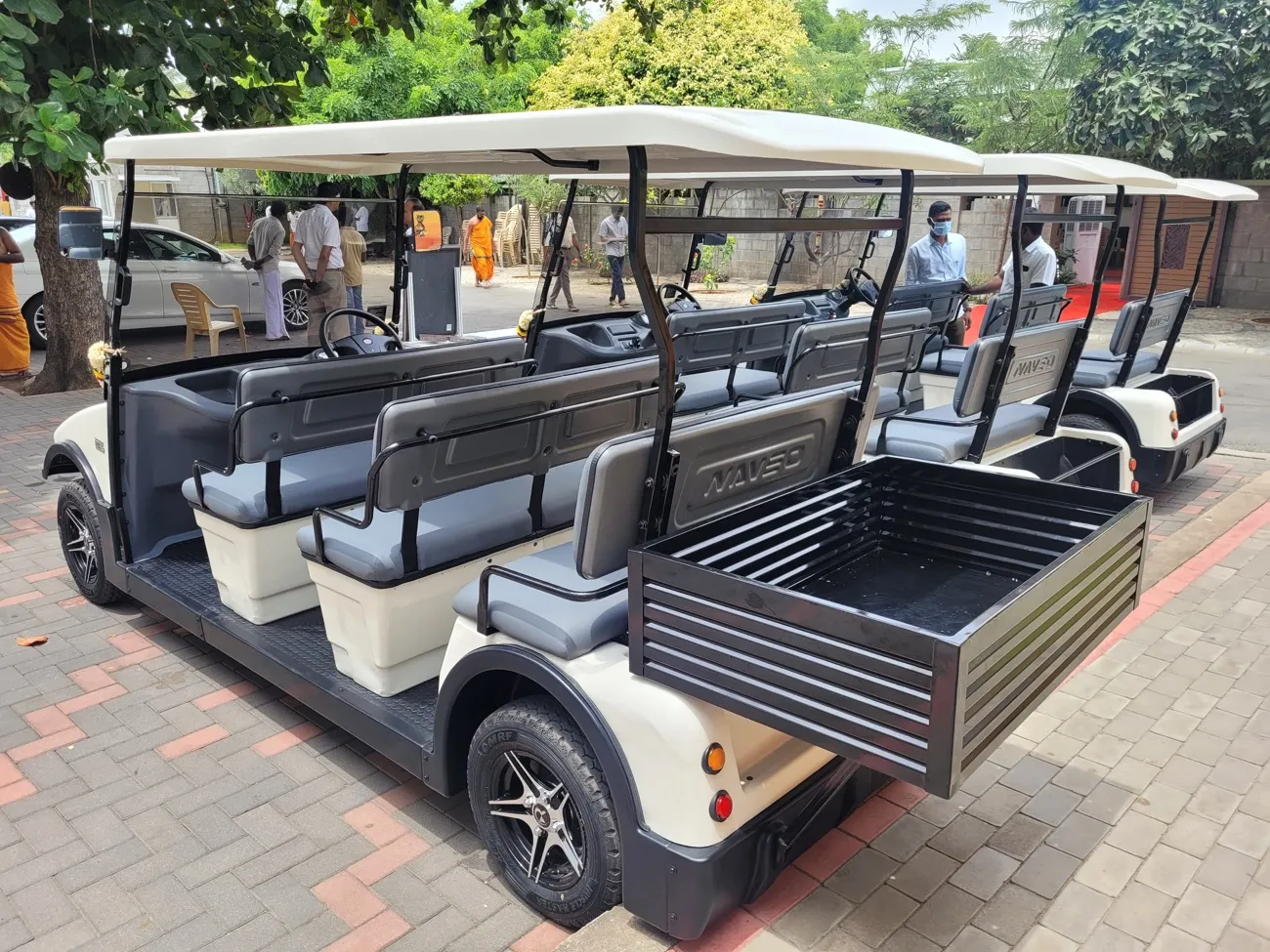

Large thermoformed plastic body panels that replace hand-laid fibreglass parts

Why convert fibreglass to thermoplastic?

The wins stack up on consistency, speed, sustainability and finish — especially for single-skin covers, panels and sanitary ware at low-to-medium volumes.

Consistent, repeatable parts

Hand lay-up varies part to part; a thermoformed sheet gives even wall thickness and the same part every cycle — quality no longer depends on the laminator.

Faster, higher throughput

Forming takes a cycle, not hours of lay-up and cure — output scales without adding skilled laminators.

Recyclable, styrene-free

Thermoset FRP is landfill and its lay-up releases styrene and VOCs. Thermoplastics regrind and reuse, in a cleaner workplace.

Formed-in colour & finish

Colour and texture come from sheet we extrude ourselves — removing the gelcoat, sanding and paint operations FRP needs.

Tougher, no gelcoat cracks

Ductile thermoplastics absorb impact instead of cracking or crazing the way brittle gelcoat surfaces do.

Clean, precise detail

5-axis CNC trimming gives sharp, repeatable cut-outs and mounting holes — no hand-cutting or drilling of cured laminate.

What converts well

Some fibreglass parts are ideal for thermoforming; others are better left as they are. Here's the honest split.

Great candidates

FRP / GRP covers, canopies & cowls
Body panels, fenders & wheel arches
Machine guards & equipment enclosures
Tractor & off-highway cabin panels
Sanitary ware — bath, shower & vanity
Single-skin panels at low-to-medium volume

Usually leave as-is

Boat hulls & very large monolithic mouldings
Highly loaded structural composite members
Thick sandwich / cored laminates
One-off parts where tooling isn't justified

Converting metal parts as well? See metal-to-plastic conversion →

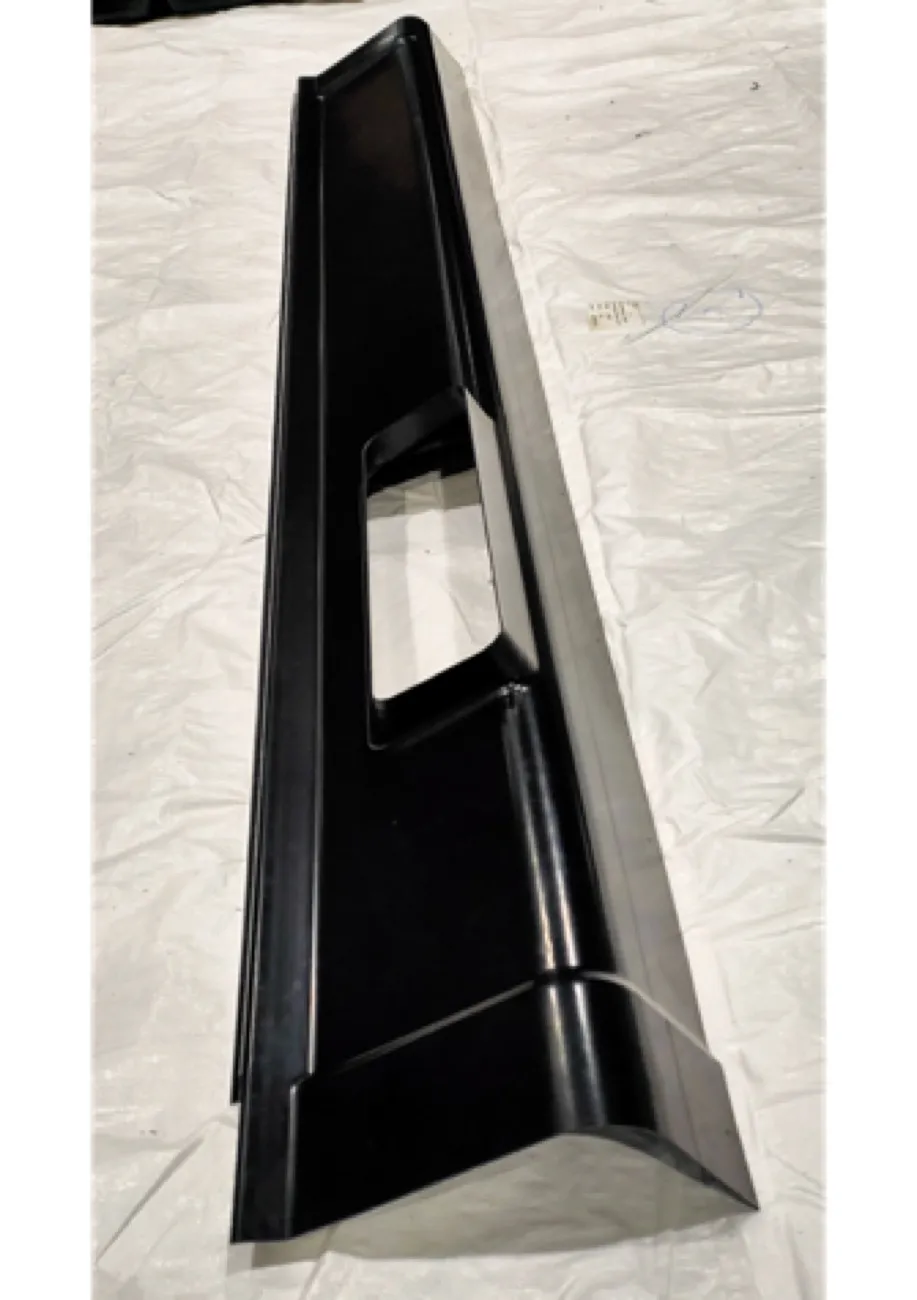

Thermoformed structural panels and covers that replace hand-laid fibreglass parts — Formed panels and covers with cut-outs and texture — one repeatable part each, where fibreglass needed lay-up, cure, gelcoat and paint.

Right for your part?

Is thermoforming the right process?

A 30-second gut-check before you send a drawing. When it fits, thermoforming is faster and far cheaper to tool; when it doesn't, we'll tell you.

A strong fit when you have…

Large or oversized parts
Low-to-medium annual volumes
First parts needed in weeks, not months
Replacing metal or fibreglass
Styling still changing between batches
Single-wall covers, trays, panels & housings

Injection moulding may win when…

Very high annual volumes
Small, thick, highly detailed parts
Solid sections, ribs, bosses or threads
Sharp detail needed on both faces

Not sure which side you're on? That's exactly the DFM call we make for free.

Tooling cost

A small fraction of an injection mould

Volume sweet spot

Low-to-medium annual runs

First parts

Weeks, not months

Cost and volume shown as typical bands — the exact crossover depends on part size, geometry and volume.

Ask us if it fits your part

How we convert a part

From your fibreglass part to production thermoplastic, with the engineering done up front — the cheapest place to solve problems.

DFM review

Send the FRP part, its mould or a drawing. Our engineers assess draw ratio, wall sections, radii and features, and flag what needs to change to form cleanly in a single skin.

Material selection

We match the FRP part's job — stiffness, impact, weather, FR, chemical or sanitary needs — to the right thermoplastic grade, extruded in-house from the pellet.

Soft tooling & prototype

Aluminium (or MDF/epoxy for prototypes) tooling is cut in-house on 5-axis CNC — often from your existing FRP part or plug. First articles prove form, fit and finish.

Production & finishing

Volume forming, 5-axis CNC trimming, then any secondary work — bonding, reinforcement, hardware assembly and packing — under one roof.

Have an FRP part in mind?

Send the part, its mould or a drawing — we'll tell you if it converts, and how much more consistent and repeatable it gets.

Talk to an Engineer Materials & Grades

Materials for conversion

We match the fibreglass part's job to the right grade — and extrude the sheet ourselves, so strength, colour, FR, UV and chemical properties are controlled from the pellet.

ABS & ABS-PMMA

Stiff, tough and cosmetic — the default for converted covers, panels and RV / caravan cladding.

PMMA-ABS (sanitary)

Gloss, chemical- and stain-resistant cap for bath, shower and vanity — the classic fibreglass replacement.

ASA

UV-stable and weatherable for outdoor body panels, canopies and exterior covers.

HDPE

Chemical and outdoor durability — tanks, ducting, covers and agricultural parts replacing GRP.

Polycarbonate & PC-FR

High impact and heat resistance, UL 94 V-0 — guards, transit and electrical housings.

FR / ESD grades

Flame-retardant and static-safe options where the enclosure has fire or electrical requirements.

Full grade data on the materials & grades page.

Conversions we've run

Anonymised by sector — the engineering is exactly as it ran.

Case snapshotSanitary — fibreglass replacement

Shower trays & vanity units

Challenge: A sanitary-ware maker's hand-laid GRP trays were slow to produce, varied in finish and needed gelcoat, sanding and paint — hard to scale with consistent quality.
Solution: PMMA-ABS thermoformed trays and panels with a gloss, chemical-resistant cap, colour matched in the sheet and 5-axis CNC-trimmed to size.
Result: A repeatable, premium-finish part at higher throughput, with the gelcoat and paint operations removed.

PMMA-ABS

sanitary cap

Formed-in

colour

No gelcoat

or paint

More case studies →

Case snapshotOff-highway — FRP replacement

Tractor & equipment cabin panels

Challenge: Fibreglass cabin panels and cowls were brittle at the edges and inconsistent between batches, with slow hand lay-up limiting output as demand grew.
Solution: UV-stable ASA / ABS thermoformed panels with formed-in texture and datum-referenced cut-outs, tooled from the existing FRP pattern.
Result: Lighter, tougher panels produced faster and more consistently, ready to scale with the model.

ASA

UV-stable

Faster

than lay-up

Consistent

batch to batch

More case studies →

Conversion assessment

Think a fibreglass part could be thermoformed?

Send a drawing, your FRP part or its mould — our engineers reply with whether it converts, the right grade and tooling approach, and a costed quote, usually within 24 hours.

Get a Quote Read the Thick-Gauge Guide

ISO 9001:2015 certified · Most quotes back within 24 hours
