EV & energy storage · UL 94 V-0
Thermoformed EV battery components
Indu Thermoformers manufactures thermoformed EV battery components in India — CCS (cell contacting system) trays, battery module covers, cell separation structures and BESS enclosure parts. Formed in halogen-free flame-retardant polycarbonate (UL 94 V-0 from 0.25 mm, CTI 600, 38 kV/mm dielectric strength) that we extrude in-house — so battery programmes get high-voltage insulation parts with material traceability from the pellet.
What we make
Materials
All sheet extruded in-house — see materials & grades.
Why source from Indu
The right FR polymer
Halogen-free PC-FR — V-0 at 0.25 mm, CTI 600, 38 kV/mm — extruded in-house with lot traceability.
Fast iteration for fast programmes
Soft tooling in 2–4 weeks lets battery designs iterate between builds without steel-tool penalties.
Precision that assembles
5-axis CNC trimming against datums for cell, busbar and fastener locations.
Documentation battery OEMs need
COA, MTC, PPAP-level submissions and UL yellow-card material data.
Common questions

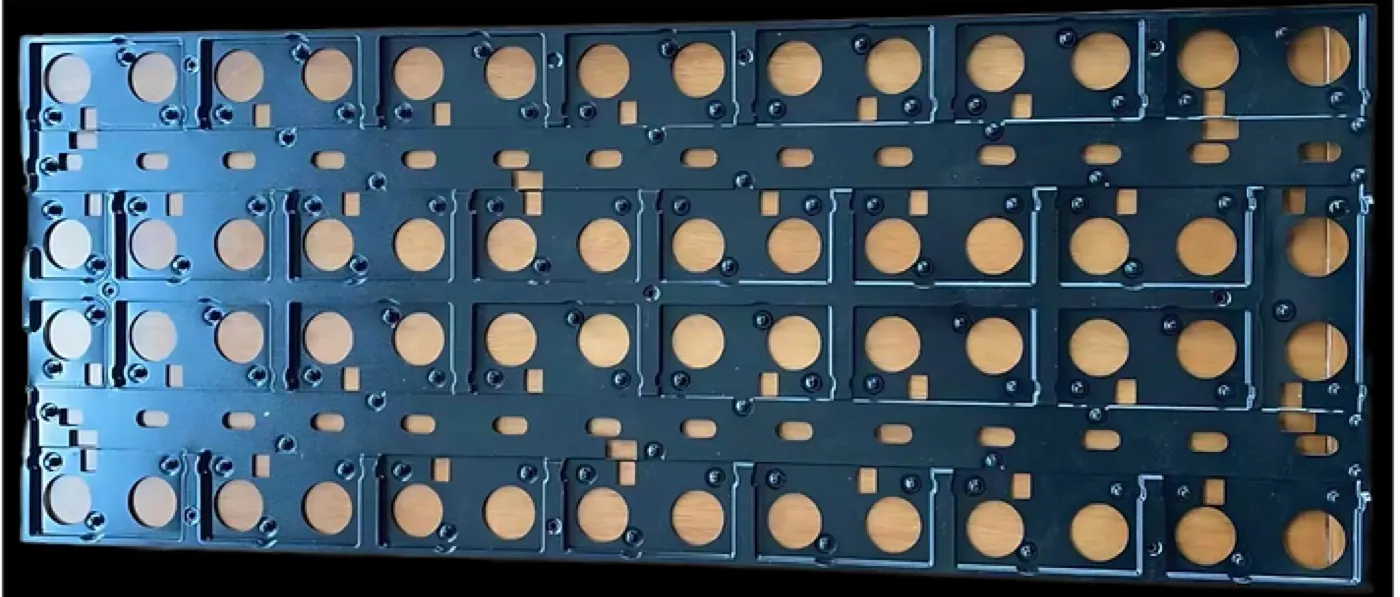

What is a CCS tray and why is it thermoformed?
A cell contacting system (CCS) tray locates busbars, FPCs and sense leads over the cells of a battery module. Thermoforming it in PC-FR gives precise cavity location, V-0 flame retardance and high-voltage insulation at a fraction of injection-mould tooling cost — and lets the design change as the module evolves.
Why does CTI 600 matter for battery parts?
CTI (comparative tracking index) measures resistance to surface tracking at high voltage. CTI 600 — the highest class — permits tighter creepage distances between conductors, letting battery designers pack cells and busbars closer while meeting IEC 60664 insulation rules.
Can you support BESS (battery energy storage) programmes?
Yes — module enclosure shells, compartment liners and separation structures in Shield FR PC and FR ABS, with the material documentation and repeatability grid-scale programmes demand.
More answers on the full FAQ page →
Let’s build it
Building a battery module or BESS product?
Send your CCS or enclosure geometry — we reply with FR material selection, tooling approach and a costed quote, usually within 24 hours.
ISO 9001:2015 certified · Most quotes back within 24 hours
